首页产品中心光学透镜球面透镜平凸柱面透镜 H-K9L平凸柱面透镜 LSCC11-40x20-030

H-K9L平凸柱面透镜,尺寸=40.0x20.0mm,F=30mm,未镀膜

价格

425.00

产品型号

LSCC11-40x20-030

货期

现货

快递/邮费

顺丰速运（满500元包邮）

数量

加入购物车

在线咨询

产品文件资料点击即可下载

资料下载

CAD PDF

Auto CAD DXF

产品规格书

技术参数
相关产品
定制加工

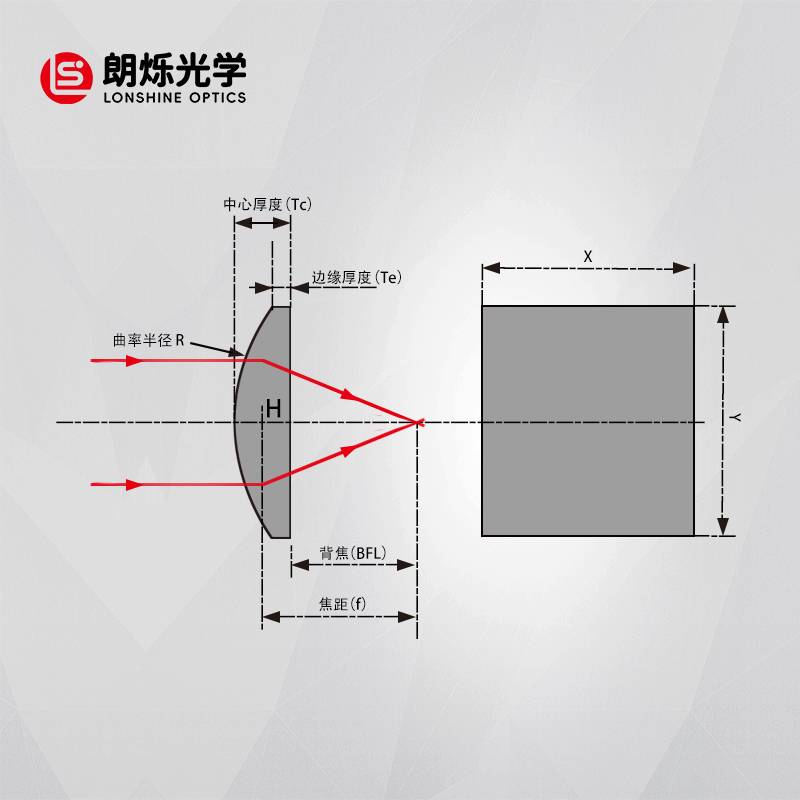

尺寸（mm）

40.0x20.0

焦距EFL(mm)

中心厚度Tc(mm)

5.7

镀膜

未镀膜

背焦 BFL(mm)

26.3

半径R1（mm）

15.51

边厚 Te(mm)

材料

精退火H-K9L光学玻璃

透镜定心误差

3~5′

设计波长

587.6nm

表面光洁度

60/40

直径误差

+0.0/-0.1mm

倒边

0.2mmX45°

中心厚度误差

±0.2mm

焦距误差(EFL)

±2%
